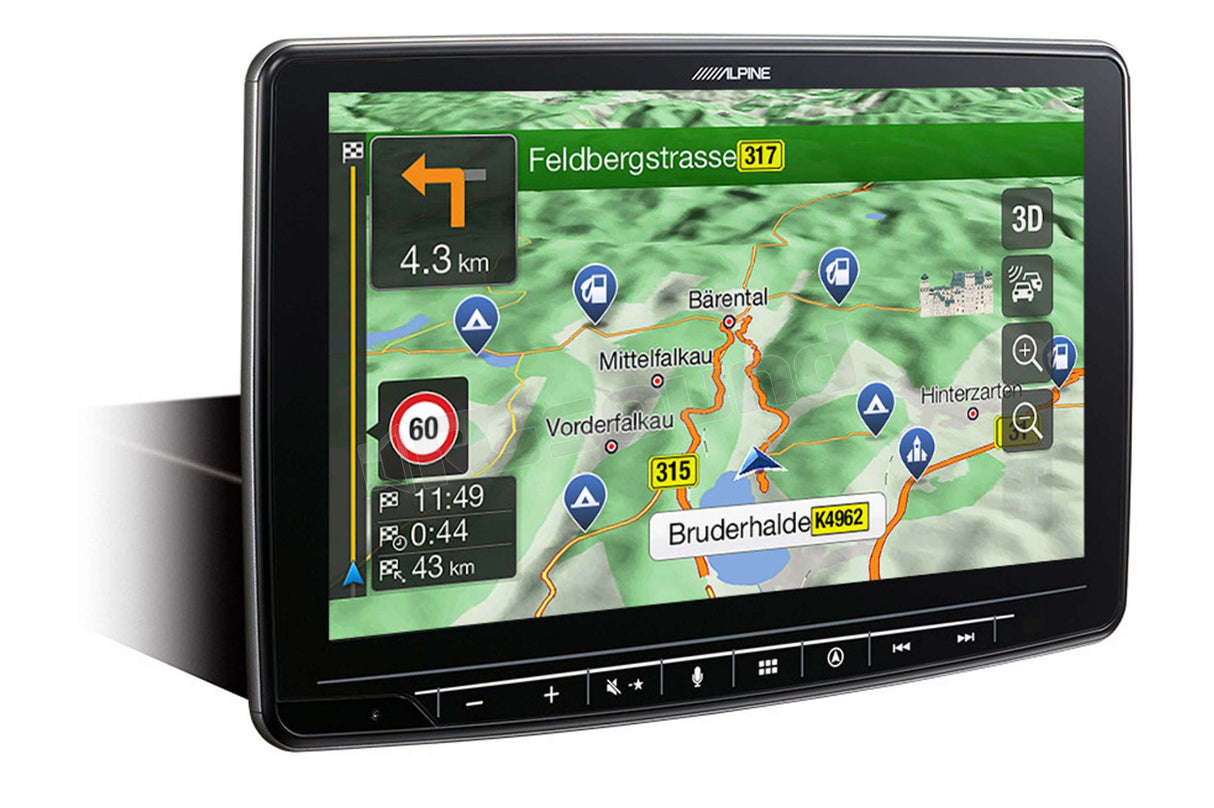

Alpine INE-F904JC è il sistema basato su Halo9 NAVI con schermo da 9'' ad alta risoluzione touch-screen compatibile con Jeep Compass model year 2017 in poi.

Il nuovo "Alpine Halo9 Navi" include la navigazione iGo Primo NextGen con mappe TomTom per 46 paesi e 3 anni di aggiornamento mappe gratuito. Puoi anche utilizzare app di navigazione (come Google Maps, Waze, ecc.) Con Apple CarPlay e Android Auto.

Ottieni anche una qualità del suono di fascia alta e opzioni di regolazione del suono con questo fantastico sistema.

INE-F904JC può essere utilizzato per sostituire la radio Jeep originale da 5 ", 7" o 8,4 ".

Auto Compatibili

¹ Non compatibile con la bussola nel quadro strumenti.

DATI TECNICI DELL'AMPLIFICATORE
Channels 8
Class D-Class
Power supply voltage / fuse 7.5 ÷ 15 VDC
Idling current 1.5 A
Standby Current Draw 0.04 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power 30 A
Remote IN 7 ÷ 15 VDC (1 mA)
Remote OUT 11 ÷ 15 VDC (200 mA)
ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers Speakers to input - selectable
AST - Automatic Signal Turn on/off (Selectable) Pre-In to input - selectable
CPL - Continuous Power Limiting Max continuous power - selectable
STADIO AMPLIFICATORE
Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power 0.05 %
Bandwidth @ -1.5 dB 10 ÷ 22k Hz
Damping factor @ 1 kHz, 4Ω, 2 VRMS >70
S/N ratio (A weighted @ 1 V Input) Master Input 95 dBA
Total Power RMS 520 W
Minimum load impedance 8 Ch: 2Ω | 4 Ch - Bridge (1-2) (3-4) (5-6) (7-8): 4Ω
Output Continuous Power (RMS) @14.4 VDC, 1% THD 8 Ch @ 4Ω: 35 W x 8

8 Ch @ 2Ω: 65 W x 8

4 Ch - (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ω: 130 W x 4
Adjustable Crossover Yes
SPECIFICHE CEA
Output power @ 4Ω, 1% THD+N, 14.4 V 35 W x 8 Ch
SN ratio (ref. 1W output) 85 dBA
INGRESSI / USCITE
Pre Outputs 1
Hi Level Inputs 6
Low Level Inputs 6
Input Optical IN S/P-DIF PCM 96 kHz/24 bit max
Sub Out (RCA Pre Out) 0 ÷ 4 V RMS Max
PROCESSORE DI SEGNALE DIGITALE
Filter type Full / Hi Pass / Lo Pass / Band Pass
Filter mode and slope Linkwitz @ 12/24 dB - Butterworth @ 6/12/18/24 dB
Crossover frequency 68 steps @ 20 ÷ 20k Hz
Phase control 0° / 180°
Analog Input Equalizer (20 ÷ 20k Hz) Automatic De-Equalization
Output Equalizer N.9 Parametrics Equalizers: ±12 dB;10 pole; 20 ÷ 20k Hz
Time Alignment Distance 0 ÷ 510 cm / 0 ÷ 200.8 in.
Time Alignment Delay 0 ÷ 15 ms
Time Alignment Step 0,08 ms; 2,8 cm / 1.1 in.
Time Alignment Fine SET 0,02 ms; 0,7 cm / 0.27 in.
Preset (Drive Preset) Rotary switch for 7 installation Presets
Input Output Real Time Audio Monitor N.2 DSP Memory, DRC selectable
CONNESSIONI DI CONTROLLO
From / To Personal Computer 1 x micro USB-B
ASP Automatic Speaker Presence
Optical / AUX select 12V control for Optical In / AUX enable
Master enable 12V control for Master In enable
REQUISITI GENERALI
PC connections Micro USB (1.1 / 2.0 / 3.0)
Software/PC requirements Microsoft Windows (32/64 bit): XP, Vista, Windows 7, Windows 8
Video Resolution with screen resize 800 x 600
Ambient operating temperature range 0 °CCARATTERISTICHE
Tuner

Memory Presets: Preset Stations (FM: 12 / MW: 6 / LW: 6)
Memory: Auto Memory
Seek Mode: Local / DX Selection
RDS

RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
DAB Tuner

DAB+ Tuner Built-in
DAB+/DMB Supported
DAB+ Slideshow Service
DLS (Dynamic Label Service)
DAB Service Following
RDS Fallback (where available)
Service Preset: 18 Preset Memory
Auto Ensemble/Service Memory
Service Search Function
PTY Search Function
Alphabet Search Function
Antenna Power Supply Selection
BLUETOOTH®

Built-in BLUETOOTH® Module
Wide Band Speech Technology
HFP (Hands-Free Profile) Compatible
Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
Advanced BLUETOOTH® Technology
Connection: SSP (Simple Secure Pairing) Supported
Individual Profile Connection Hands Free Phone and Music Streaming
Phone Book: Phone Book Synchronization
Speed Dial: 4 Preset Memory (per phone)
Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name
Device Name Display
Auto Answer
Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
Redial Function
Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
DTMF (Touch-Tone) Function
Signal Strength Indicator
Battery Level Indicator
Menu Language Selection: 24 Languages
Firmware Updatable
Microphone Included to 55 °C (32°F to 131°F)
Size 198 x 45,50 x 134 / 7.8 x 1.8 x 5.27
Weight 1.5 kg

DIMENSIONI
Dimension A 198 mm
Dimension B 178 mm
Dimension C 134 mm
Dimension D 114 mm
Dimension E 45.5 mm
