Alpine I905D-F Freestyle Sistema Multimediale personalizzabile da 9 pollici

Sistema Multimediale con AA e CP
Sistema Freestyle per installazioni personalizzate

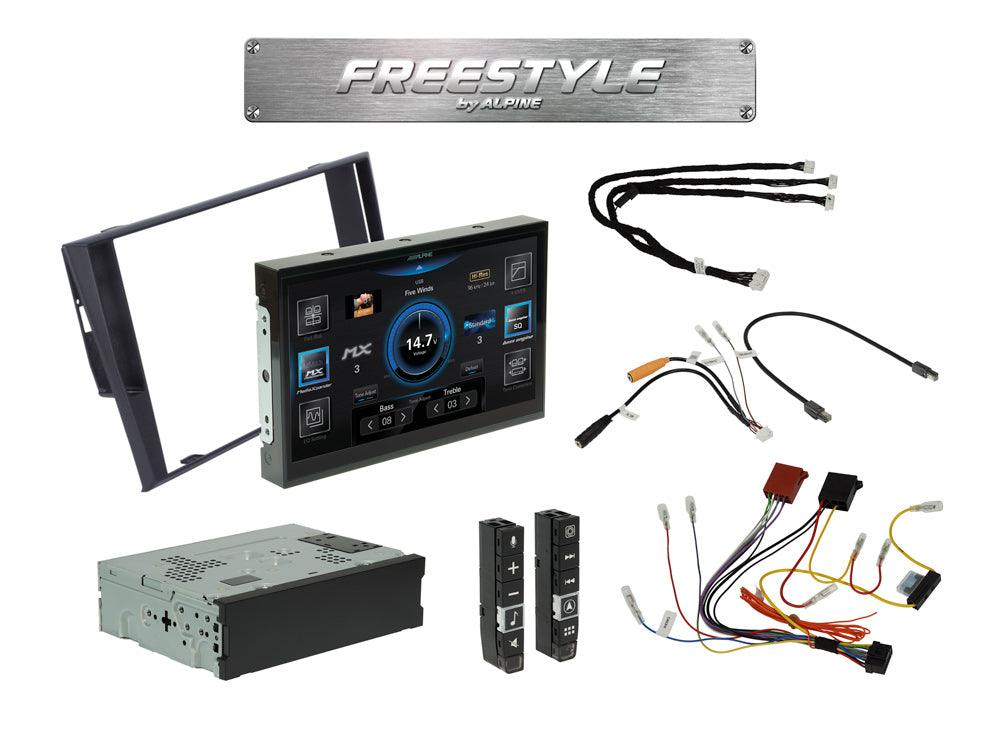

Tutte le parti incluse
Chiavi intercambiabili

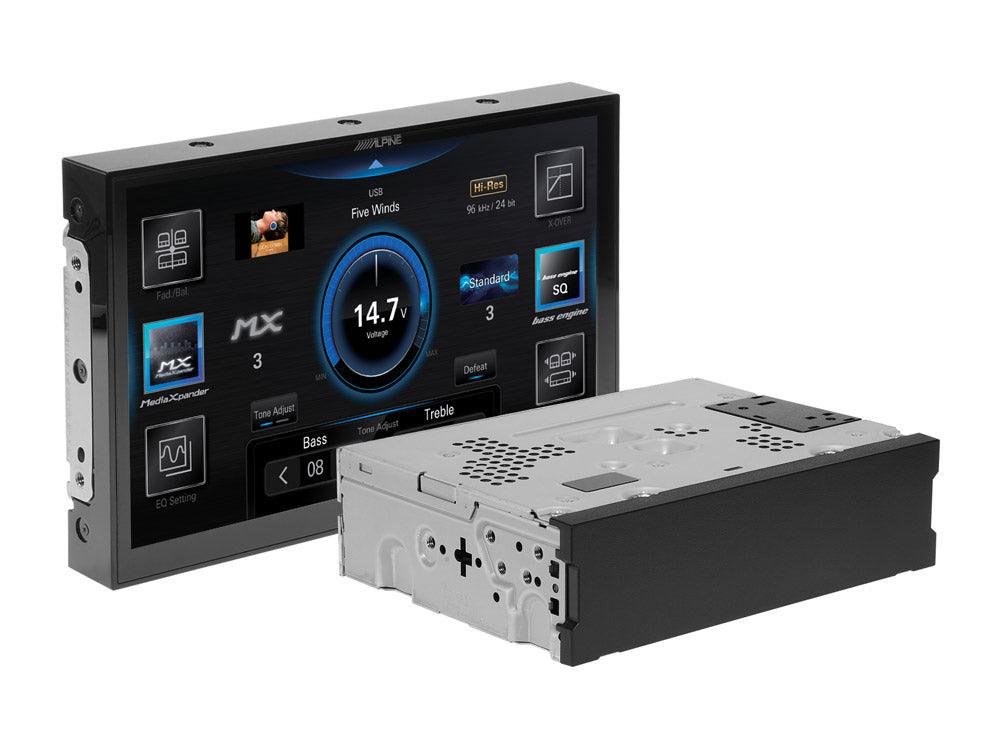

Schermo HD WXGA da 9 pollici
Apple Car Play senza fili
2 porte USB
App audio ad alta risoluzione TIDAL
La prima unità principale al mondo con amplificatore di classe D integrato
Goditi un'eccellente qualità del suono
Ampie opzioni di intrattenimento
Collegamento bus dati veicolo
Telecamere con assistenza alla guida
Manopola di controllo esterna

I sistemi Alpine Freestyle sono stati creati per soddisfare la crescente domanda di sistemi di installazione personalizzati. Il sistema Freestyle può essere utilizzato soprattutto per i veicoli in cui la radio o il navigatore non sono adatti e non sono disponibili soluzioni. Sta poi all'abilità dell'installatore utilizzare il sistema Freestyle per creare un'installazione perfetta per il veicolo.

Il sistema di navigazione Alpine Freestyle di quarta generazione è dotato di un touch-screen WXGA da 9 pollici ad alta risoluzione con una risoluzione di 1280 x 720 pixel, ampie opzioni multimediali tra cui la compatibilità con Apple CarPlay wireless e Android Auto (via cavo). Dispone inoltre di 2 porte USB e di un sintonizzatore radio digitale DAB+ integrato.

Il sistema Alpine Freestyle è tra le prime unità principali al mondo dotate di un amplificatore di classe D integrato e dispone di un'ampia gamma di funzioni professionali per la regolazione del suono, come X-Over a 2 vie, equalizzatore parametrico, correzione temporale digitale e molto altro ancora.

CARATTERISTICHE
Radio / DAB Tuner

Preset Stations (FM: 3x12 / DAB: 3x12 / AM: 2x12)
Memory: Auto Memory
Seek Mode: Local, DX, Pre-Set, Service
RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT
DAB+/DMB Supported
DAB+ Slideshow Service
DLS (Dynamic Label Service)
DAB Service Following
RDS Fallback (where available)
Auto Ensemble/Service Memory
Service Search Function
PTY Search Function
Alphabet Search Function
BLUETOOTH®

Built-in BLUETOOTH® Module V4.2
HFP (Hands-Free Profile) Compatible
A2DP (Advanced Audio Distribution Profile) Compatible
AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
Phone Book Synchronization
Speed Dial: 4 Preset Memory (per phone)
Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
Redial Function
Speech Volume Level Adjustment: (Outgoing and Incoming)
24 Menu Languages
Microphone Included
Works with iPhone®

Compatible with iPhones and iPods featuring a lightning connector
Various search functions and Album Artwork Display
Battery Charging
Connectivity

Works with Apple CarPlay wirelessly (requires CarPlay enabled iPhone)
Works with Android Auto (Requires Android Auto enabled smartphone, wired connection)
Dash-Cam Link for DVR-C320S to allow playback and control of your dash-cam
Navigation Function

Online navigation capability with Apple CarPlay and Android Auto compatible navigation apps
Includes GPS enabled navigation antenna
USB Media Connection

2x USB cable included
USB port 1: data port / USB port 2: charging port
Music Playback: FLAC, MP3, WMA, AAC, WAV, APE compatible
Video Playback: MP4, MOV, FLV, MKV compatible
Supported Video Coding: MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
Various search functions included
Sound Tuning

Bass Engine SQ and Bass Engine PRO sound tuning
Subwoofer Level Adjustment
6 V PreOut
10 Equalizer PreSets
13-Channel Parametric EQ x4 audio channels + 4-channel for subwoofer
6-Channel Digital Time Correction
2-way Digital Crossover
Independent Source Volume Level Setting
For detailed sound tuning options please see the owner’s manual PDF below in the “SUPPORT” section
General

4x 50 Watts Class-D High Power Amplifier
9-inch Capacitive Touch-Screen WXGA Display (1280 x 720p)

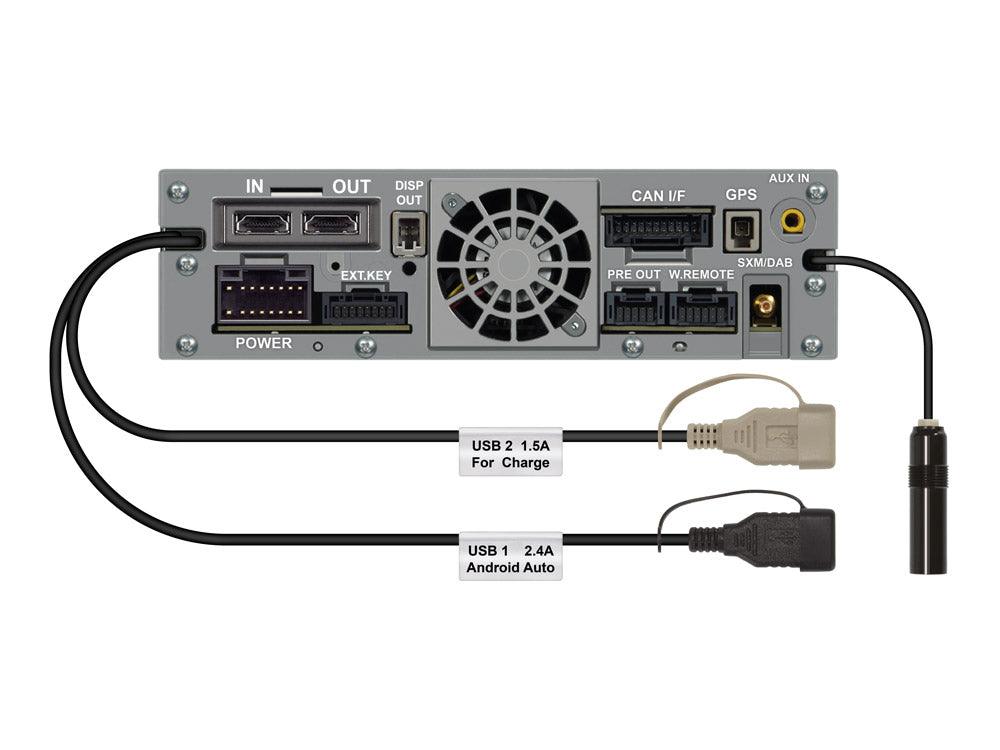

3 PreOuts (6 V, Front / Rear / Subwoofer)
1 A/V AUX Input (3.5 mm micro jack)
1 HDMI input / 1 HDMI output
2 USB Ports (1x USB data port / 1x USB charging)
Steering Wheel Remote Control Ready
Vehicle Display Interface Ready (UART connection)
Remote Control Ready
2x Camera Connection (Camera Direct connector) Note: does not support KCX-C250MC camera switch box
Camera Distance Guides (adjustable)
Live Contrast Adjustment
Menu Language: 24 Languages
Auto Dimmer
Anti-theft security code
Engine Start-Stop unaffected
Installazione

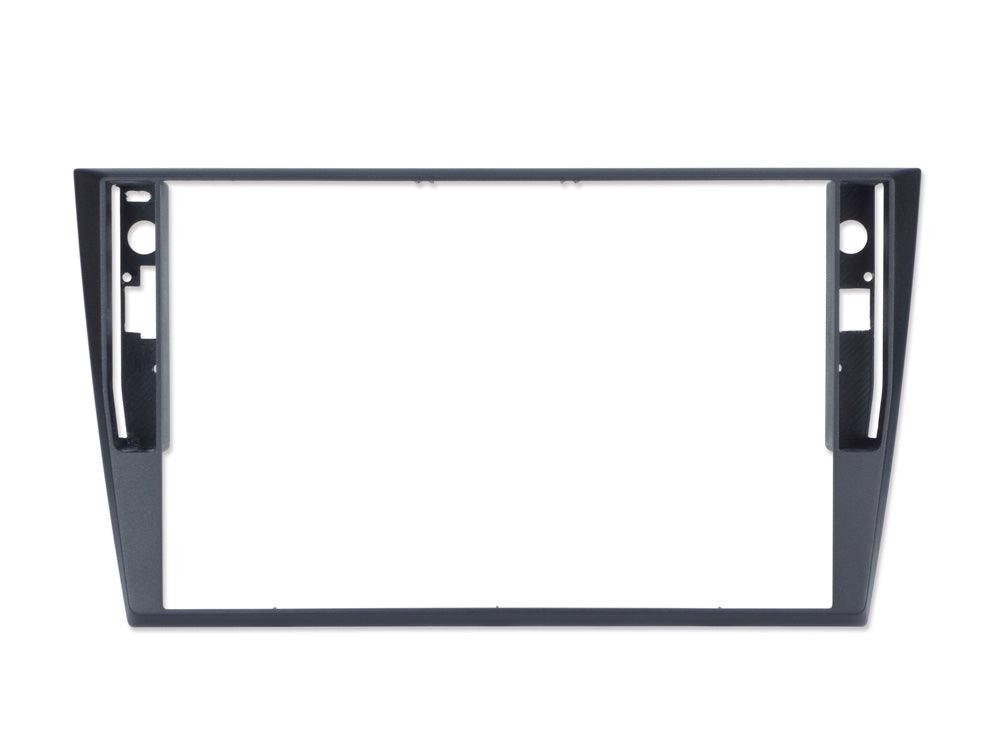

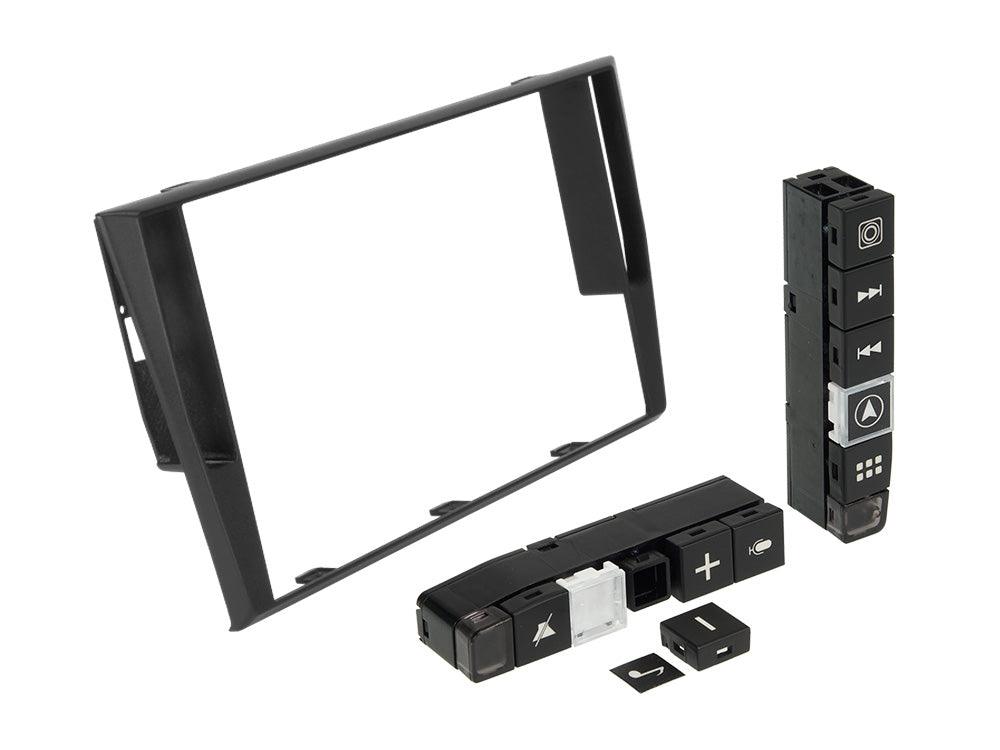

La soluzione Freestyle Kit è inclusa e contiene schermo da 9 pollici, piastra frontale, tasti, cablaggio dei tasti, cavi del display, microfono, cablaggio del cavo remoto.
Interfacce disponibili

SPECIFICHE

Screen

Screen Size: 9-inch Capacitive WXGA
Number of Picture Elements: 2,764,800 pixels (1280 x 3 x 720)
Illumination System: White LED Backlighting
Effective Number of Picture Elements: 99.99%
Colour System: NTSC, PAL
Max Power Output Ratings

Max Power Output: 4x 50 W

Radio / DAB Tuner

FM Tuning Range: 87.5 - 108.0 MHz
AM Tuning Range: 531 - 1,602 kHz
DAB band III: 174 – 240 MHz
Alternate Channel Selectivity: 80 dB
Signal-to-Noise Ratio: 65 dB / 90 dB
DAB audio format: DAB/MPEG 2, DAB+/AAC, DMB Profile 1/BSAC/DMB profile 2/AAC
WiFi

Reception Frequency: IEEE 802.11 B/g/n (2.4 GHz)
Channels: 1 – 13 ch (2.4 GHz)
Security Protocols: WPA3/WPA2-PSK (TKIP, AES)

USB

USB Requirements: USB 2.0
USB 1: data port / 2,400 mA (Mass Storage Class)
USB 2: charging port / 1,500 mA (CDP support)
USB Class: Mass Storage Class, Play From Device
File System: FAT16 / FAT32 / exFAT
FLAC, MP3, WMA, AAC, WAV, APE Decoding
Video Playback: MP4, MOV, FLV, MKV compatible
Supported Video Coding: MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
Number of Channels: 2-Channel (Stereo)
Frequency Response: 5 - 40 kHz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
Total Harmonic Distortion (at 1 kHz): 0.005%
DynamicRange(at 1kHz): 95 dB
Signal-to-Noise Ratio: 95 dB

GPS

GPS compatible navigation antenna included
GPS frequency: 1575.42 +/- 1.023 MHz
Reception sensitivity (search): - 136 dB max

BLUETOOTH®

BLUETOOTH® Version: Bluetooth V4.2
Output Power: +4 dBm Max. (Power class 2)
HFP (Hands Free Profile)
OPP (Object Push Profile)
PBAP (Phone Book Access Profile)
HSP (Head Set Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio/Video Remote Control Profile)
SPP (Serial Port Profile)
Supports LDAC Audio Codec

Sound Tuning

Subwoofer Level Adjustment: 0 to +15
Subwoofer Phase Setting: 0° or 180°
BASS ENGINE SQ: 5 Modes, Level 0 to +6
For detailed sound setting bands and frequencies please see the owner’s manual PDF below in the SUPPORT section

HDMI Section

Input Format 720p / 480p / VGA
Output Format 720p / 480p

General

Power Requirement: 14.4 V. DC (11-16V allowable)
Pre Output Voltage (Before Clipping): 6 V / 10k ohms

Dimensions

Display cable length: 40 cm
Key harness length: 43 cm
DIN Size: 1DIN chassis and 9-inch Capacitive WXGA Monitor
Chassis Size (W x H x D) mm: 178 x 50 x 142 mm

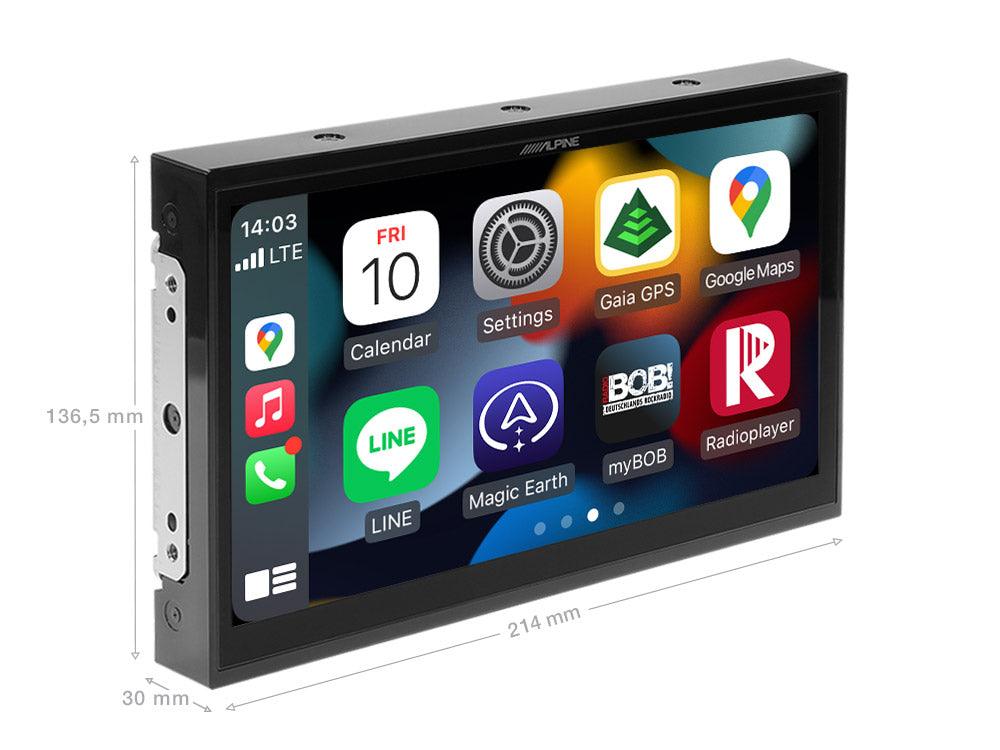

Monitor Size (W x H x D) mm: 214.7 x 136.6 x 29.9 mm
