MONTARBO GRAVIS 62 Amplificatore SMPS 2 x 3000W, 2 Ohm variabile

MONTARBO GRAVIS 62 Amplificatore SMPS 2 x 3000W, 2 Ohm variabile

MONTARBO GRAVIS 62 Amplificatore SMPS 2 x 3000W, 2 Ohm variabile

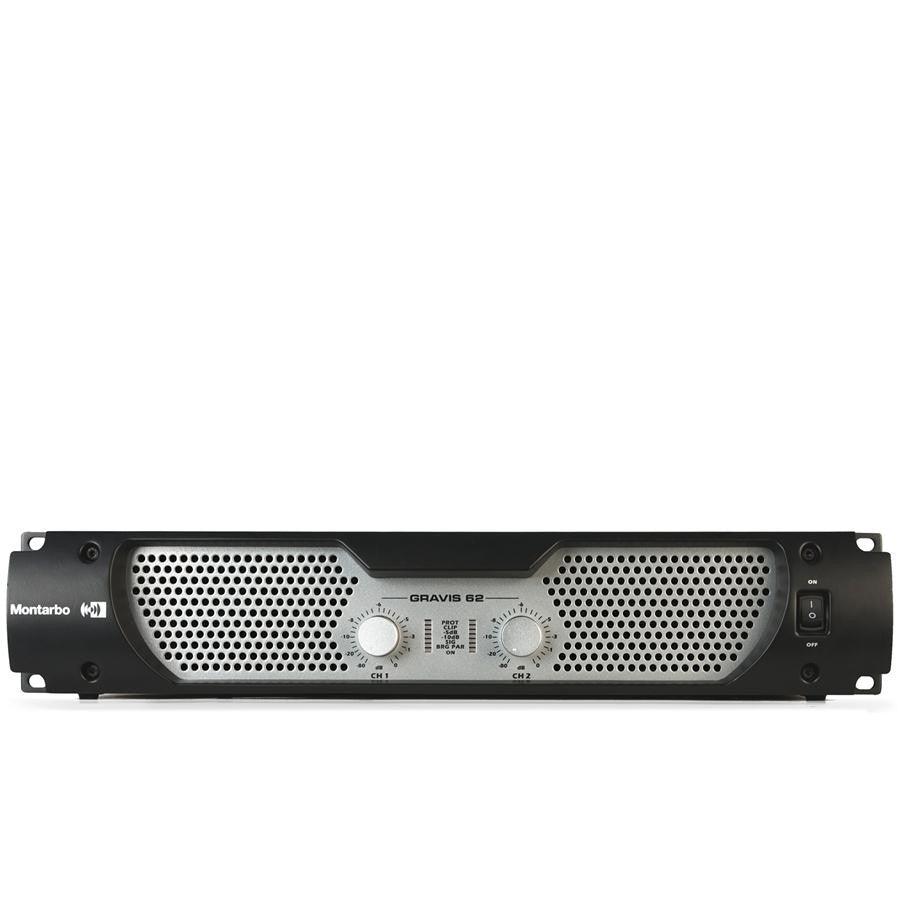

Amplificatore MONTARBO GRAVIS 62 SMPS 6200W 2U, Ohm variabile.


MODALIT STEREO: 2 x 1200W @ 8O. 2 x 2000W @ 4O. 2 x 3000W @ 2O.


MODALIT BRIDGE: 4100W @ 8O. 6200W @ 4O.


PROTEZIONI: Soft start DC, corto circuito, sovraccarico, limite di clip, surriscaldamento, volume progressivo, VHF.


Peso 13 kg.


Dimensioni L483 x H 89 x P 505 mm.




Technical Data
Power RMS @ 4 ohms 2 x 1400W
Power RMS @ 8 ohms 2 x 850W
Power Bridged RMS @ 8 ohms 2900W
Frequency Response 20Hz-20KHz @ 8O (+/-0.5dB)
THD+N(THD%) 200
SN Ratio =90dB
Limiter "THD clip/limit, infrasound frequency
Cooling Airflow from front panel to rear panel.

Input Section
Input Signal XLR
Output Signal XLR
Input Sensitivity [dBu] 32dB
Input Sensitivity [V] 1.0V/0.775V
Input Impedance Bal 20K/Unbal 10K
Output Connector SpeakOn

Mechanic
Installation Standard Flight case
Unit 2
Width 483 mm
Height 89 mm
Depth 464 mm
Weight 16 Kg
