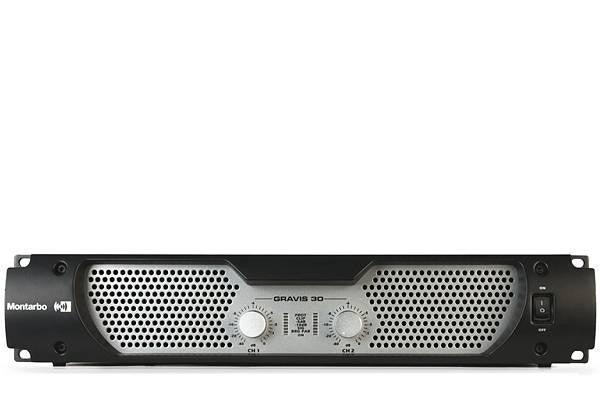

MONTARBO GRAVIS 30 Amplificatore SMPS 3000W 2U, 2 x 1350W 2 Ohm variabile

MONTARBO GRAVIS 30 Amplificatore SMPS 3000W 2U, 2 x 1350W 2 Ohm variabile

MONTARBO GRAVIS 30 Amplificatore SMPS 3000W 2U, 2 x 1350W 2 Ohm variabile



Amplificatore MONTARBO GRAVIS 30 SMPS 3000W 2U, Ohm variabile.

Amplificatore SMPS 3000W 2U.


MODALIT STEREO: 2 x 650W @ 8O. 2 x 1050W @ 4O. 2 x 1350W @ 2O.


MODALIT BRIDGE: 2200W @ 8O. 3000W @ 4O.


PROTEZIONI: Soft start DC, corto circuito, sovraccarico, limite di clip, surriscaldamento, volume progressivo, VHF.


Peso 9.7 kg.


Dimensioni L483 x H 89 x P 450 mm.




Technical Data
Power RMS @ 4 ohms 2 x 780W
Power RMS @ 8 ohms 2 x 460W
Power Bridged RMS @ 8 ohms 1600W
Frequency Response 20Hz-20KHz @ 8O (+/-0.5dB)
THD+N(THD%) 200
SN Ratio =90dB
Limiter "THD clip/limit, infrasound frequency
Cooling Airflow from front panel to rear panel.

Input Section
Input Signal XLR
Output Signal XLR
Input Sensitivity [dBu] 32dB
Input Sensitivity [V] 1.0V/0.775V
Input Impedance Bal 20K/Unbal 10K
Output Connector SpeakOn

Mechanic
Installation Standard Flight case
Unit 2
Width 483 mm
Height 89 mm
Depth 355 mm
Weight 12 Kg
